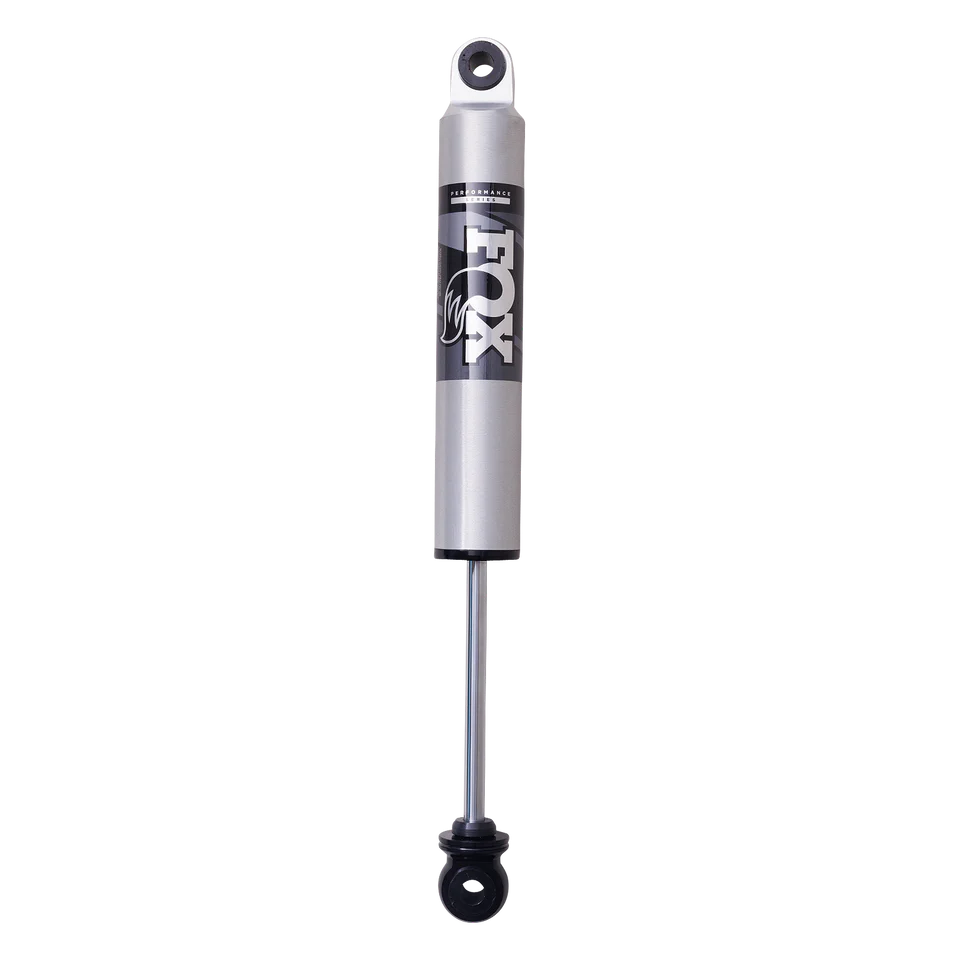

- FOX Performance Series 2.5 shocks for the Toyota Hilux are a bolt-on solution with vehiclespecific valving and larger pistons to improve on and off-road performance. Level your vehicle without straining ball joints or linkages to maintain OEM reliability and vehicle behavior.
Monotube shocks utilize type II anodized aluminum bodies, efficiently dissipating heat and preventing corrosion. The 2.5-inch shock body features an internal floating piston (IFP) to separate the shock oil from the high-pressure nitrogen, optimizing damping.
Bolt-on Performance Series 2.5 shocks ride in comfort and increase damping capacity.
PART NUMBER 987-24-053 FEATURES 2.5” Impact extruded 6061-T6 aluminum shock body Type II clear-anodized body plating
High-flow velocity-sensitive damping 5/8” hard chrome shaft
Internal floating piston (IFP)
SERIES Performance TRAVEL 8.05 BODY 2.5” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time BODY PLATING Clear-anodized for a durable finish COMPONENTS Black-anodized, CNC-machined 6061-T6 billet aluminum SHAFT 5/8″ hard chrome plated heat-treated alloy steel PISTON Race-developed high-flow piston design EXTENDED LENGTH 23.89 COMPRESSED LENGTH 15.84 TOP MOUNT Eyelet BOTTOM MOUNT Eyelet
