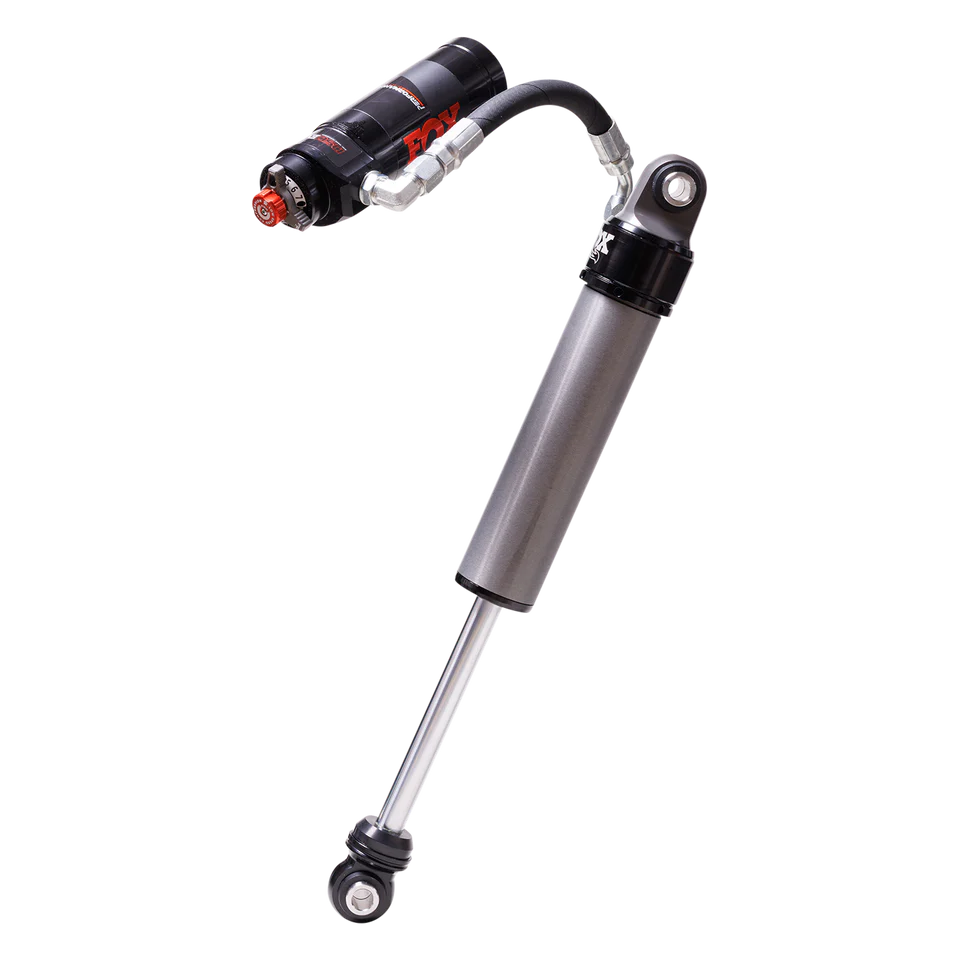

INEOS GRENADIER | 2.5 PERFORMANCE ELITE SERIES – 883-26-166

    FOX Performance Elite Series 2.5 shocks featuring DSC EVO are a bolt-on solution tuned for the INEOS Grenadier. Optimize vehicle performance without compromising OEM reliability and vehicle behavior.

    Type III anodization prevents corrosion and wear of the 2.5-inch aluminum bodies. External reservoirs increase oil capacity, allow additional shock stroke to maintain available travel, and decrease the harshness associated with nitrogen ramp-up. Each reservoir features a Dual Speed Compression Evolution (DSC EVO) adjuster strategically mounted to eliminate interference with aggressive tires at full lock.

    DSC EVO features Variable Valve Control (VVC) on the high-speed circuit. VVC doesn’t add preload to the shim stack to adjust high-speed damping. The result is more comfort, independent high and low-speed circuits, and increased capacity for big hits. Add clicks of highspeed compression without sacrificing small-bump sensitivity.

    Performance Elite shocks with DSC EVO provide versatility without compromise to navigate rough terrain and improve on-road manners while remaining comfortable and in control.



    PART NUMBER 883-26-166
    FEATURES 2.5″ impact-extruded and CNC-machined 6061-T6 Type III anodized aluminum body

    7/8″ hard chromed steel shafts

    Vehicle-specific tuning maximizes performance

    Redundant sealing pack system: main seal, wiper seal, scraper seal

    External reservoir, with DSC EVO adjuster

    SERIES Performance Elite
    TRAVEL 8.38
    BODY 2.5″ impact extruded and CNC machined 6061-T6 hard anodized aluminum body resists rust over time
    BODY PLATING Hard-anodized for a durable finish
    COMPONENTS Black-anodized, CNC-machined 6061-T6 billet aluminum
    SHAFT 7/8″ hard chrome plated heat-treated alloy steel
    PISTON Race-developed high-flow piston design
    VALVING Application specific valving to maximize performance
    SEALS Redundant sealing pack system main seal, wiper seal, scraper seal
    BEARINGS PTFE-lined, heat-treated, alloy steel spherical
    EXTENDED LENGTH 23.22
    COMPRESSED LENGTH 14.84
    TOP MOUNT Eyelet
    BOTTOM MOUNT Eyelet
    FITMENT NOTES Includes Reservoir Mounting Bracket
